Drop side trailer is a semi-trailer with a side panel structure. Wide range of uses, mainly suitable for medium and long-distance transportation of medium-heavy and bulk goods, with strong applicability, it has become the first choice for medium and long-distance freight vehicles.

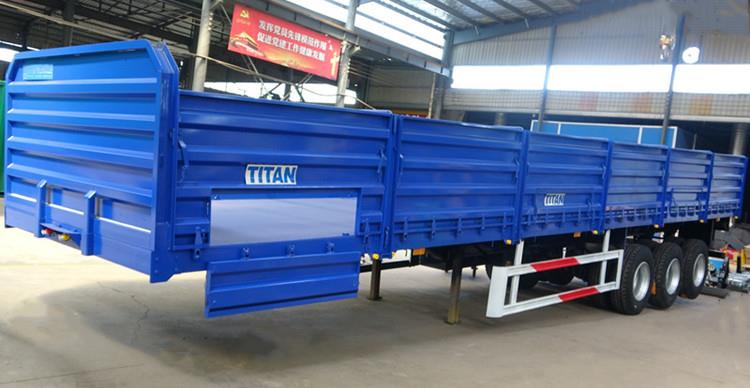

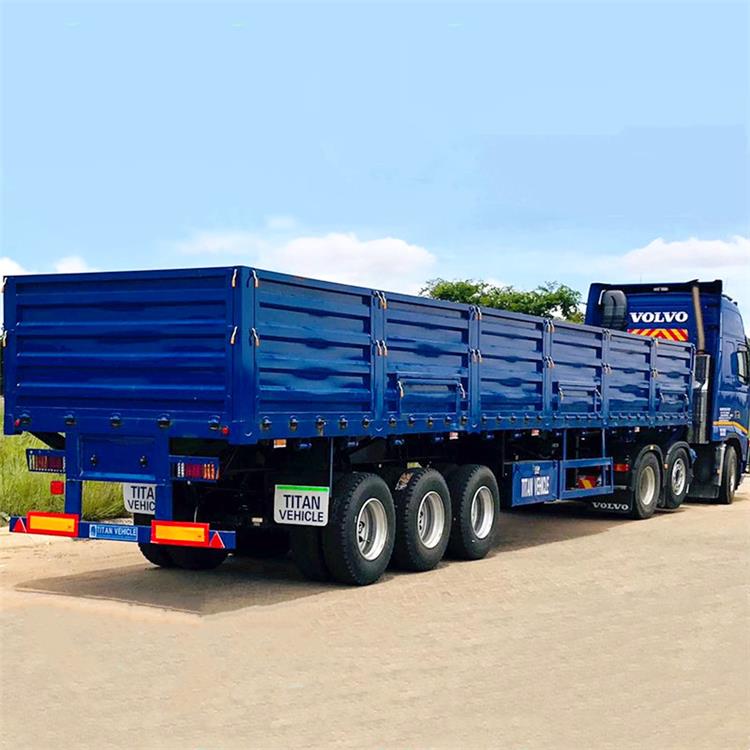

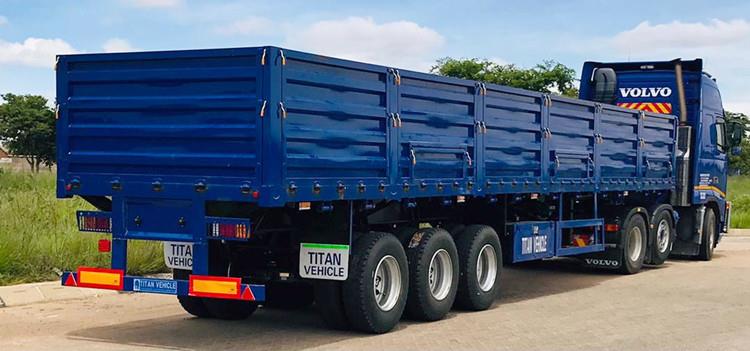

60 Ton Drop Side Trailer for Sale In Nigeria
60 Ton Drop Side Trailer for Sale In Nigeria
60 Ton Drop Side Trailer for Sale In Nigeria
60 Ton Drop Side Trailer for Sale In Nigeria
Tare Weight: About 7.6T
Dimension(mm): 13000x2500x3050mm
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Trailer Sides: 1500mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW
Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Bottom Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

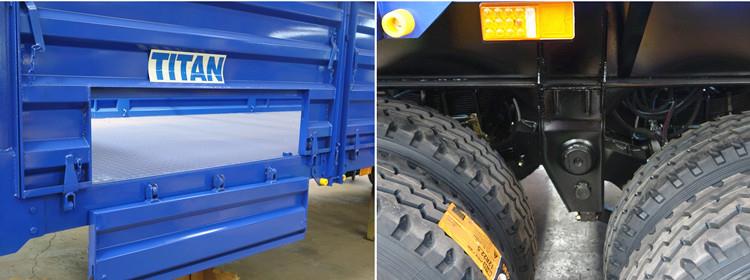

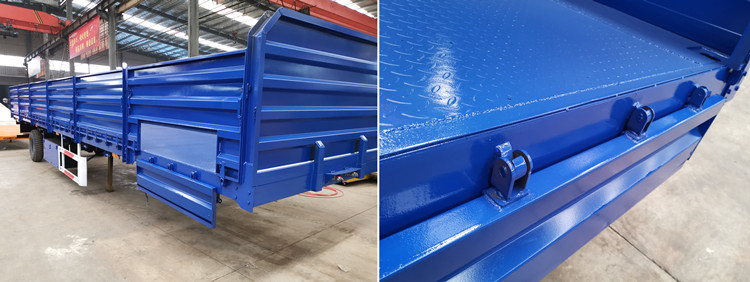

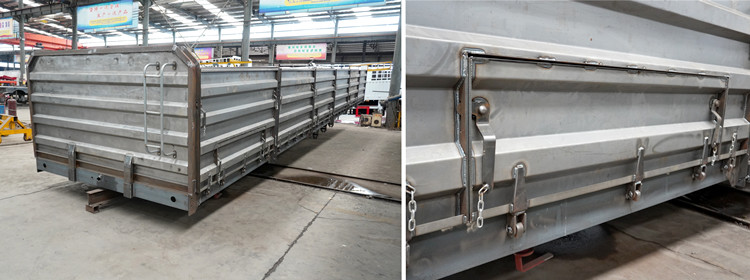

The body of the Drop side trailer is made of high-quality steel, advanced technology, and strict production. The Drop side trailer has a reasonable structure, reliable performance, easy operation and beautiful appearance.
The frame of the Drop side trailer is a through-beam structure, and the longitudinal beam adopts a straight type or a gooseneck type. The height of the web is from 400mm to 550mm, the manganese plate is welded, the longitudinal beam is welded by automatic submerged welding, the frame is treated by shot peening, and the cross beam penetrates the longitudinal beam and is welded as a whole.
The 60 ton Drop side trailer suspension adopts non-independent steel plate stamping rigid suspension, which is made of tandem leaf springs and suspension supports.
