This end dump trailer prices has three types of single-sided rollover, double-sided rollover and rear unloading. The frame and the longitudinal beam of the carriage are welded with high-quality manganese plates.
6 axle dump truck trailer adopts high strength steel to make it durable when loading the sand or small stones or rocks. 6 axle dump truck trailer equipped with reliable hydraulic HYVA cylinder.
End Dump Trailer Prices | 6 Axle Dump Truck Trailer | Heavy Duty Dump Trailers
End Dump Trailer Prices | 6 Axle Dump Truck Trailer | Heavy Duty Dump Trailers
End Dump Trailer Prices | 6 Axle Dump Truck Trailer | Heavy Duty Dump Trailers
End Dump Trailer Prices | 6 Axle Dump Truck Trailer | Heavy Duty Dump Trailers
Dimension: 12055mm * 2600mm *3600mm

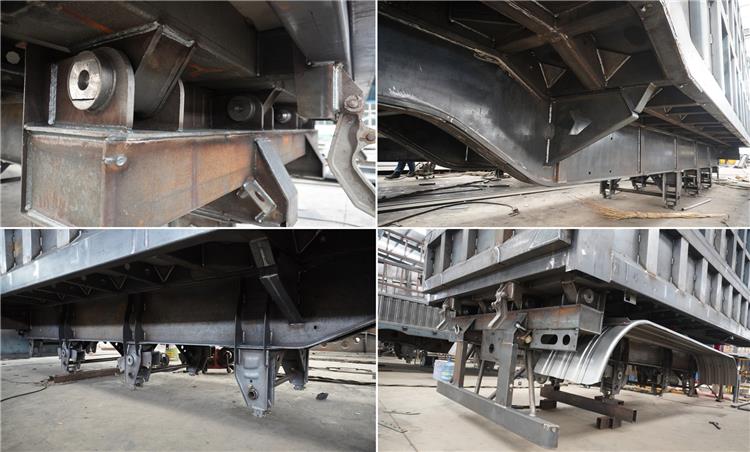

Main beam:
Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.
Total volume(cbm): 45cbm
Side wall thickness: 4 - 6mm
Heavy Duty Dump Trailers End plate: 8mm

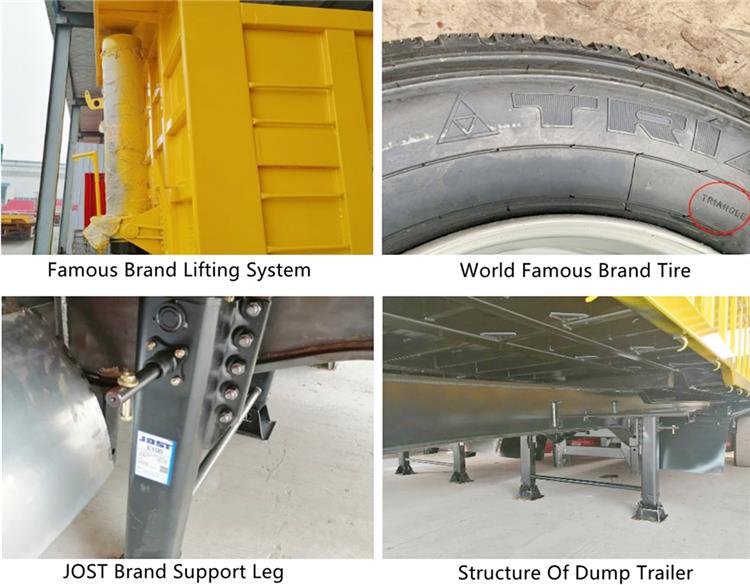

Lifting System: Full set of HYVA lifting cylinder
Heavy Duty Dump Trailers Axle: 6 Axle, 16T, FUWA
Rim: 8.0-20 or 9.00-20
Tire: 12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Bottom Platform: 4-6mm thick checkered plate
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Heavy Duty Dump Trailers Tool box: 1 set
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
It is forbidden to disassemble and adjust the relief valve on the lift valve, and do not expose the heavy duty dump trailers to the air for more than 2 hours in the lifted state.
Do not use the oil cylinder as a stable support for the body of the 6 axle dump truck trailer, when loading goods, you should ensure that the front, rear, left and right are evenly loaded.
When unloading, please make sure the ground around the 6 axle dump truck trailer is firm and level, keep the 6 axle dump truck trailer stable, and make sure the main chassis of the dump truck is in a straight line with the scrapped dump truck
Do not allow the height of the cargo to exceed the hydraulic heavy duty dump trailers rear door.
