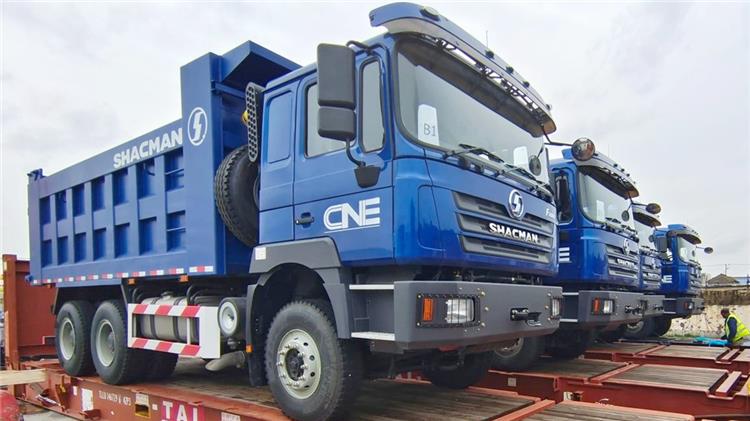

Shacman f3000 10 wheeler dump truck Safe, comfortable, quiet and more powerful. It has strong conveying capacity and is equipped with leaf spring design, which fully meets the carrying capacity of standard transportation and is more suitable for complex working conditions.
Shacman 10 wheeler dump truck adopts key advanced technology and is a product for Chinese market and international market. It is a new generation of high-end, advanced and mature heavy trucks.
The Shacman 10 wheeler dump truck is powered by the well-known Weichai engine in the industry. The maximum output horsepower is 380 horsepower, which is fast and powerful. The design on the axle adopts a wheel-side reduction axle, which increases the bearing capacity of the Shacman dump truck.

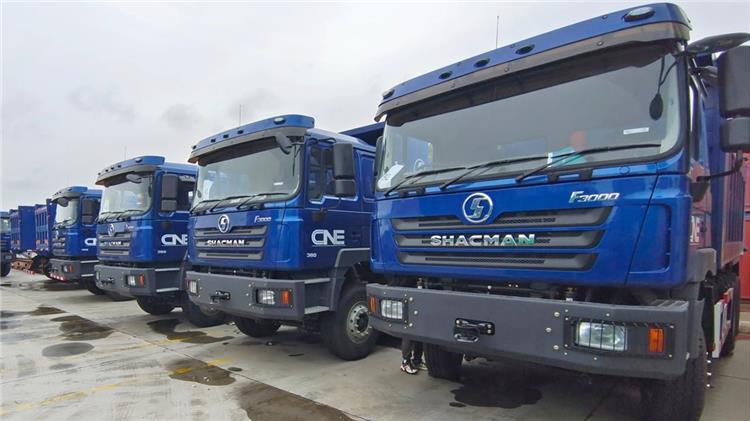

Shacman F3000 10 Wheeler Dump Truck for Sale - Shacman

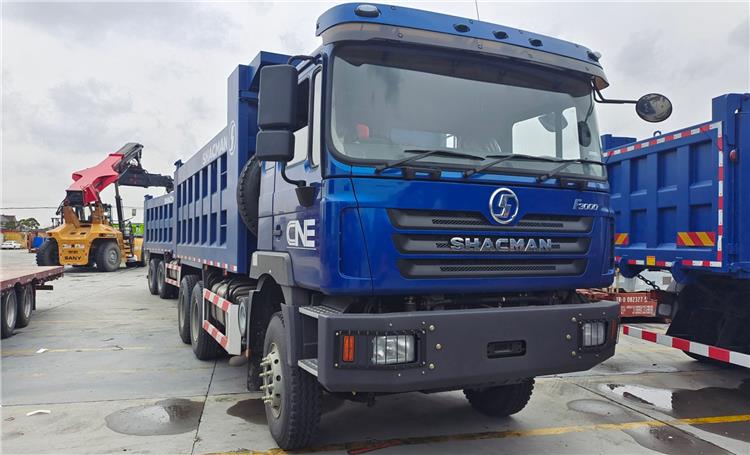

Shacman F3000 10 Wheeler Dump Truck for Sale - Shacman

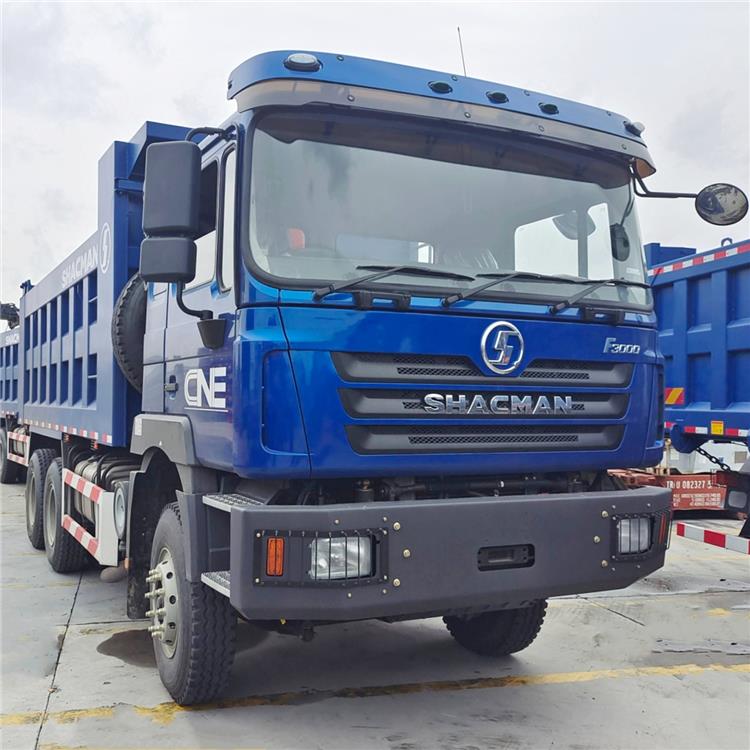

Shacman F3000 10 Wheeler Dump Truck for Sale - Shacman
Brand: Shacman Dump Truck
Drive model: Left or right driven hand, 6X4
Clutch: ∮430 diaphragm clutch
Gearbox Model: Fast Fuller 9JS135 gearbox with 9 forward and 1 reverse
Propeller shaft: ∮180 contrite gear propeller shaft
Front axle: Man technology 7.5 tons
Rear axle: Styre13 tons with hub reduction ratio 1:4.8
Chassis: Various widths, front 940mm and rear 780mm
Rear suspension: inverted leaf spring with stabilizer
Instrument panel: Combined instrument panel
Tyre: 12.00-20/12.00R20/12.00R22.5,11ps
Cabin: Man F3000 flat head with two seats and one sleep with A/C, 2 rear windows, mechanical clerestory, hydraulic suspension cab, hydraulic chair, metal bumper, USB, electrically reversal cab
Other: enlargement radiator, ABS
Shacman 10 Wheeler Dump Truck Engine:
Engine model: Weichai WP10.336
Power(Kw/Hp): 380
Speed(r/min):2200
Idle speed(r/min):600-800
Max torque(N.m):1250
Type: electrically control, diesel engine, 4-stroke,6-cylinder in line, inter-cooling and turbo-charging, euro-3 emission standard
Stroke(mm):125/147
Displacement(L):9.726
Min.fuel consumption(g/Kw.h):≦198
Engine oil filling volume:39L
Thermostat Opened at 82℃
Oil pump: Bosch
Shacman 10 Wheeler Dump Truck Steering
Model: 8098 integral circuiting ball power steering
Ratio:22.2-26.2:1
Brakes
Running brake: Dual circuiting compressed air brake
Parking brake: Rear wheel power spring brake
Auxiliary brake: Engine exhaust brake
Electrics
Starter: 5.58kw,24V
Alternator: 1.54kw(28V,55A)
Battery: 135AH
Dimension (mm)
Wheel base:3200+1350
Front-wheel track:1525
Rear wheel track:2036
Front overhang: 1850
Rear overhang: 1450
Approach angle: 28°
Departure angle: 30°
Overall length: 7550
Overall width:2490
Overall height: 3450
Body dimension:4800X2300X1300/1400/1500(bottom 8mm and side 4mm)
Fuel tank(L): 300L
Weight(Kg)
GVW:25000
Front axle loading capacity:7500
Rear axle loading weight: 13000X2
Performance:
Max. running speed(km/h):90
Max. climbing capacity(%):20
Min. ground clearance(mm):318
Fuel consumption(L/100km):40
