Shacman F3000 8x4 cargo truck is mainly used for agricultural and sideline products transportation, cold chain transportation, less-than-truckload transportation, express transportation, and construction material transportation.
Shacman truck price in nigeria adopts the golden power chain of "Weichai engine + Fast gearbox + Hande axle". The engine can be selected from Weichai 7L, 10L, 12L, 13L, and the horsepower range covers 300-550 horsepower.

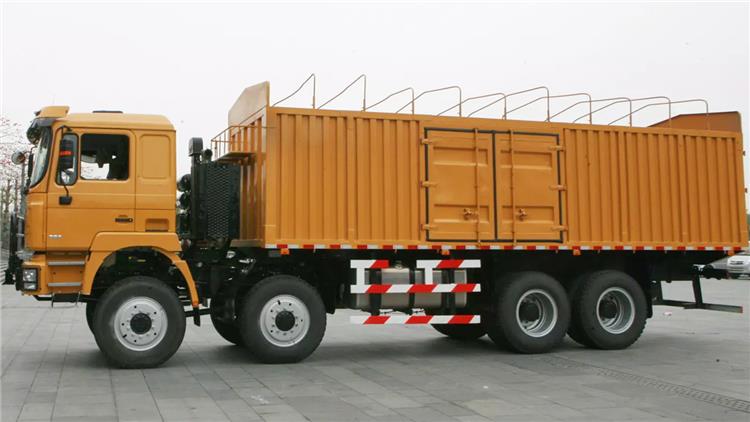

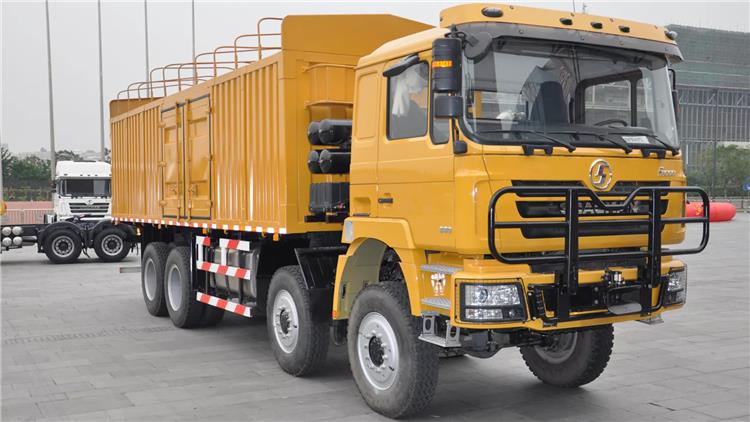

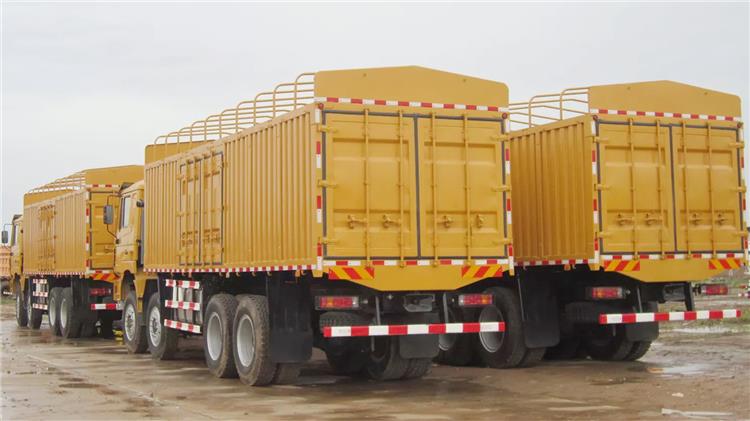

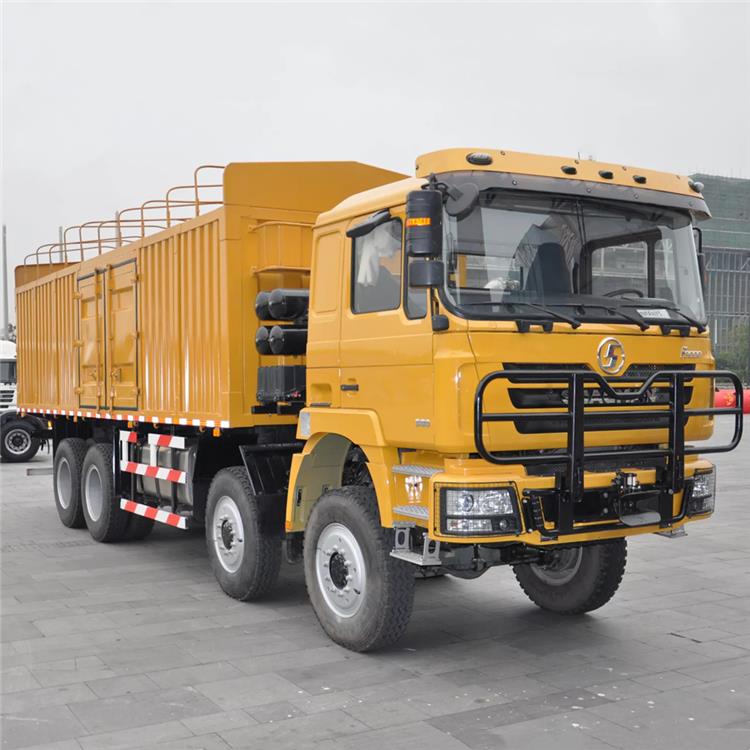

Shacman F3000 8x4 Cargo Truck Price for Sale In Nigeria | Shacman 8x4
Shacman F3000 8x4 Cargo Truck Price for Sale In Nigeria | Shacman 8x4
Shacman F3000 8x4 Cargo Truck Price for Sale In Nigeria | Shacman 8x4
Brand: Shacman F3000 Price Cargo Truck
Drive model: Left or right driven hand, 8X4
Clutch: ∮430 diaphragm clutch
Gearbox Model: Fast Fuller RT11509C gearbox with 9 forward and 1 reverse
Propeller shaft: ∮180 contrite gear propeller shaft
Front axle: Man technology 7.5 tons
Rear suspension: inverted leaf spring with stabilizer
Steering Model: 8098 integral circuiting ball power steering
Ratio:22.2-26.2:1
Instrument panel: Combined instrument panel
Rear axle: Styre13 tons with hub reduction ratio 1:4.8
Chassis: Various width, front 940mm and rear 850mm
Cargo dimension Volume(mm): 9000X2326X500/800
Other: A/C, enlargement radiator, ABS
Shacman f3000 price Engine
Engine model: Weichai WD12.375
Power(Kw/Hp): 276/375
Speed(r/min):2200
Idle speed(r/min):600-800
Max torque(N.m):1500
Stroke(mm):126/155
Displacement(L):11.596
Min.fuel consumption(g/Kw.h):≦198
Engine oil filling volume:39L
The thermostat opened at 82℃
Oil pump: P12
Type: mechanically control, diesel engine, 4-stroke,6-cylinder in line, inter-cooling and turbo-charging, euro-2 or emission standard
Shacman cargo truck Electrics
Starter: 7.8kw,24V
Alternator: 1.54kw(28V,70A)
Battery: 180AH
Shacman cargo truck Brakes
Running brake: Dual circuiting compressed air brake
Tyre: 12.00-20/12.00R20/12.00R22.5,13pcs
Cabin: Man F2000 flat head with two seats and one sleep with A/C
Parking brake: Rear wheel power spring brake
Auxiliary brake: Engine exhaust brake
Shacman cargo truck Dimension (mm)
Wheel base:4600+1350+1800
Front wheel track:2036
Rear wheel track:1860
Front overhang: 1525
Rear overhang: 3070
Overall length: 12025
Overall width:2490
Overall height: 3770
Approach angle: 20°
Departure angle: 11°
Fuel tank(L): 380L
Weight(Kg)
GVW:31000
Front axle loading capacity:7500X2
Rear axle loading weight: 13000X2
Performance
Max. running speed(km/h):96
Max. climbing capacity(%):20
Min. ground clearance(mm):318
Fuel consumption(L/100km):40
