The combined headlights of the Price of shacman tipper truck are arranged on the one-piece bumper. The high and low beams, fog lights, turn signals and LED daytime running lights are integrated. There is also a pedal in the middle of the bumper. Handrail for easy daily scrubbing of the windshield of price of shacman tipper truck.
Shacman L3000 Tipper Truck adopts China's current higher dump truck technology. During the research and development period, a large number of leading technologies are used, and the international top research and development teams such as German MAN and American Cummins are used to achieve high reliability and reduce failure rate.

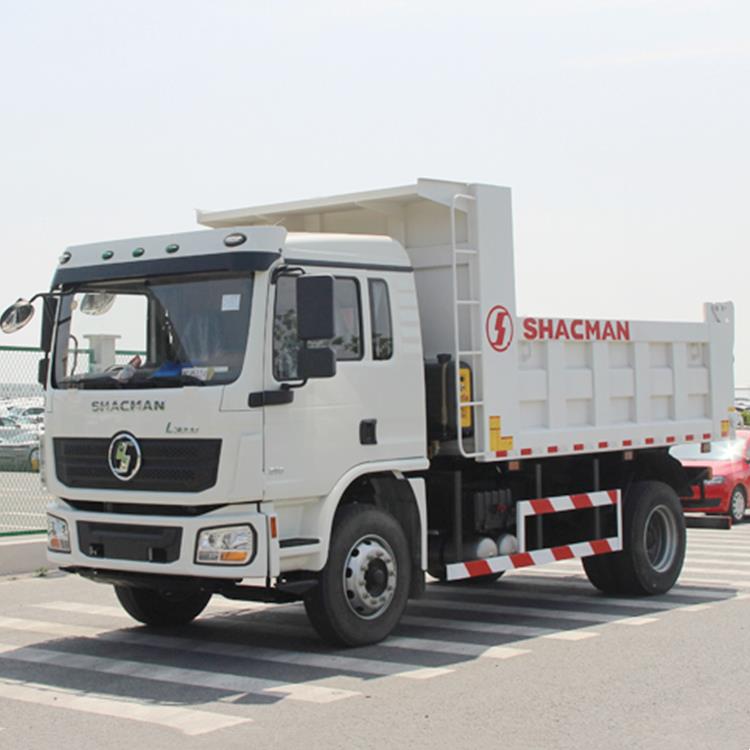

Shacman L3000 Tipper Truck for Sale | New Shacman Truck

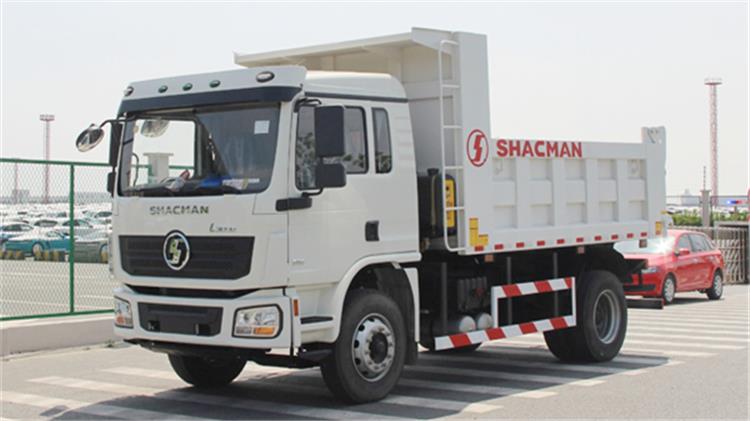

Shacman L3000 Tipper Truck for Sale | New Shacman Truck

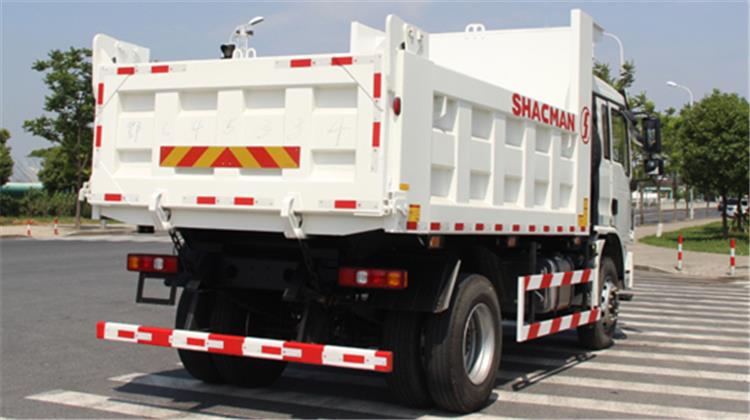

Shacman L3000 Tipper Truck for Sale | New Shacman Truck

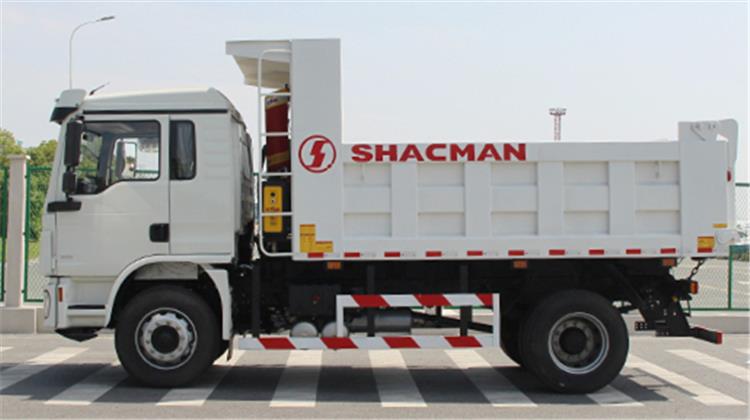

Shacman L3000 Tipper Truck for Sale | New Shacman Truck
Brand: New Shacman Truck
Drive model: Left or right driven hand, 4X2
Clutch: ∮430 diaphragm clutch
Gearbox Model: Fast Fuller 9JS135 gearbox with 9 forward and 1 reverse
Propeller shaft: ∮180 contrite gear propeller shaft
Front axle: Man technology 7.5 tons
Rear axle: Styre13 tons with hub reduction ratio 1:4.8
Chassis: Various widths, front 940mm and rear 780mm
Rear suspension: inverted leaf spring with stabilizer
Instrument panel: Combined instrument panel
Tyre: 12.00-20/12.00R20/12.00R22.5,11ps
Cabin: Man F3000 flat head with two seats and one sleep with A/C, 2 rear windows, mechanical clerestory, hydraulic suspension cab, hydraulic chair, metal bumper, USB, electrically reversal cab
Other: enlargement radiator, ABS
Shacman L3000 Engine:
Engine model: Weichai WP10.336
Power(Kw/Hp): 247/336
Speed(r/min):2200
Idle speed(r/min):600-800
Max torque(N.m):1250
Type: electrically control, diesel engine, 4-stroke,6-cylinder in line, inter-cooling and turbo-charging, euro-3 emission standard
Stroke(mm):125/147
Displacement(L):9.726
Min.fuel consumption(g/Kw.h):≦198
Engine oil filling volume:39L
Thermostat Opened at 82℃
Oil pump: Bosch
Steering
Model: 8098 integral circuiting ball power steering
Ratio:22.2-26.2:1
Brakes
Running brake: Dual circuiting compressed air brake
Parking brake: Rear wheel power spring brake
Auxiliary brake: Engine exhaust brake
Electrics
Starter: 5.58kw,24V
Alternator: 1.54kw(28V,55A)
Battery: 135AH
Dimension (mm)
Wheel base:3200+1350
Front-wheel track:1525
Rear wheel track:2036
Front overhang: 1850
Rear overhang: 1450
Approach angle: 28°
Departure angle: 30°
Overall length: 7550
Overall width:2490
Overall height: 3450
Body dimension:4800X2300X1300/1400/1500(bottom 8mm and side 4mm)
Fuel tank(L): 300L
Weight(Kg)
GVW:25000
Front axle loading capacity:7500
Rear axle loading weight: 13000X2
Performance:
Max. running speed(km/h):90
Max. climbing capacity(%):20
Min. ground clearance(mm):318
Fuel consumption(L/100km):40
