The chassis configuration of the Shacman Tipper Truck 420 still inherits the previous configuration. Weichai WP7/WP10 engine is matched with Fast gearbox. Hande introduced the front axle and single-stage/wheel-side reduction rear axle of German MAN technology.
The Shacman h3000 uses the design of the MAN dashboard in the interior. The center console adopts the semi-surrounding design commonly used in Japanese trucks, and various commonly used buttons are integrated on it.

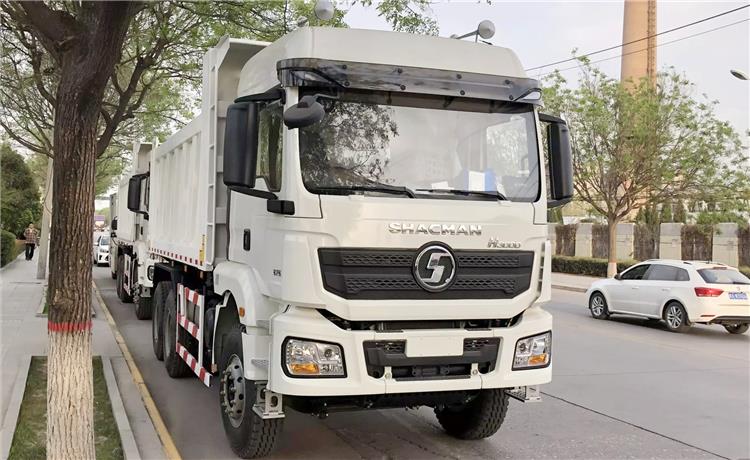

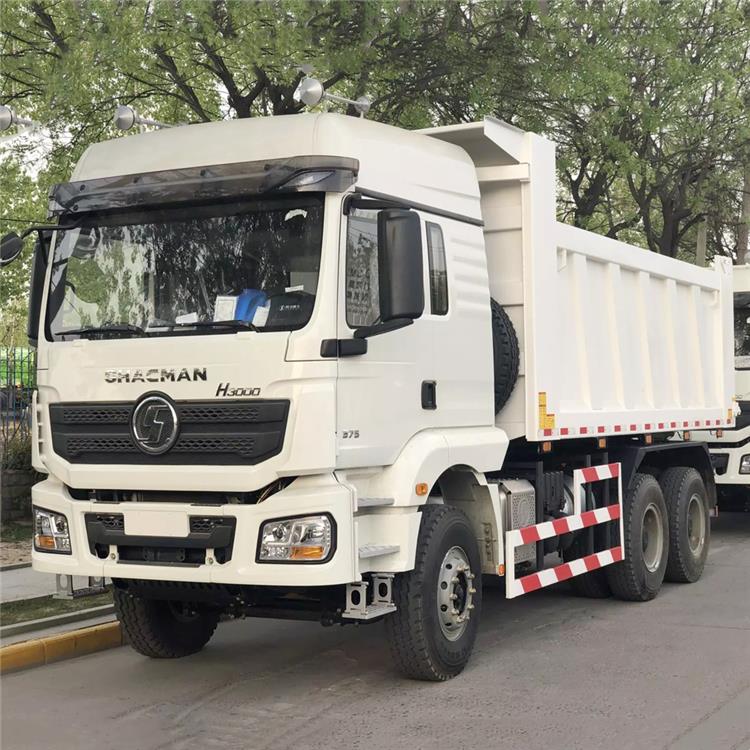

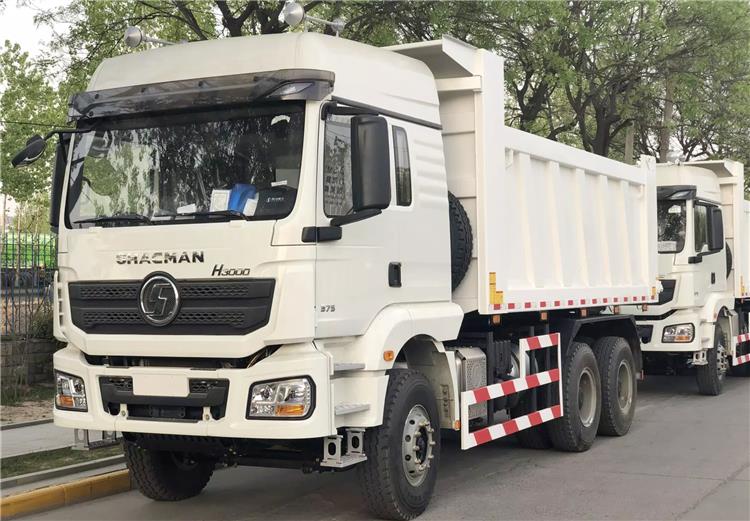

Shacman Tipper Truck 420 | New Shacman H3000 Truck for Sale
Shacman Tipper Truck 420 | New Shacman H3000 Truck for Sale
Drive type: 6x4 LHD
Shacman H3000 Cab
Type: H3000 mid-lengthened flat roof with 1 sleeper
Equipment: Hydraulic main seat, four-point hydraulic suspension cab, lever-type rear-view mirror, electric air conditioner, electric window shaker, manual flip, telescopic shaft control, ordinary air filter, metal bumper, two-stage pedal, water tank protection grid, tail light Protection grid, 165Ah maintenance-free battery, full English logo
Shacman H3000 Dimensions
Wheel base(mm): 3775+1400
Total dimensions: 8750×2490×3450
Shacman Tipper Truck Weight
Kerb mass: 12400kg
Total mass: 25000kg
Shacman Tipper Truck Engine
Brand: WEICHAI
Model: WP10.380E22
Power(kw/HP): 279/380
Displacement(L): 9.726
Emission Standard: Euro II
New Shacman Truck Transmission
Brand: FAST
Model: 10JSD180+QH50
Control type: Manual
Gear shift: 10-forward and 2-reserve speeds
Shacman H3000 Price Axle
Front axel: MAN 9.5T
Rear axel: 16T Man double reduction axle with ratio 5.92
Tires
Type(Standard): 12.00R20
Dump Body
Cargo Dimension (mm): 5600×2300×1500, middle lifting system, thickness of floor 8mm and side 6mm
