Some important parts and components on Shacman truck price are all products produced by well-known foreign companies. Due to the new layout of pipeline and wire speed in shacman truck price, and the separate direction of gas circuit and circuit, the service durability is improved by 50%
Shacman truck for sale has high engine power and fewer gear shifts, which can save fuel. The direct gear transmission matching theory reduces the speed of the transmission system and reduces kinetic energy loss. It can also save fuel.
The independent lubrication system on the drive axle of Shacman truck for sale reduces friction and resistance, and the optimized design of various components can also save fuel.

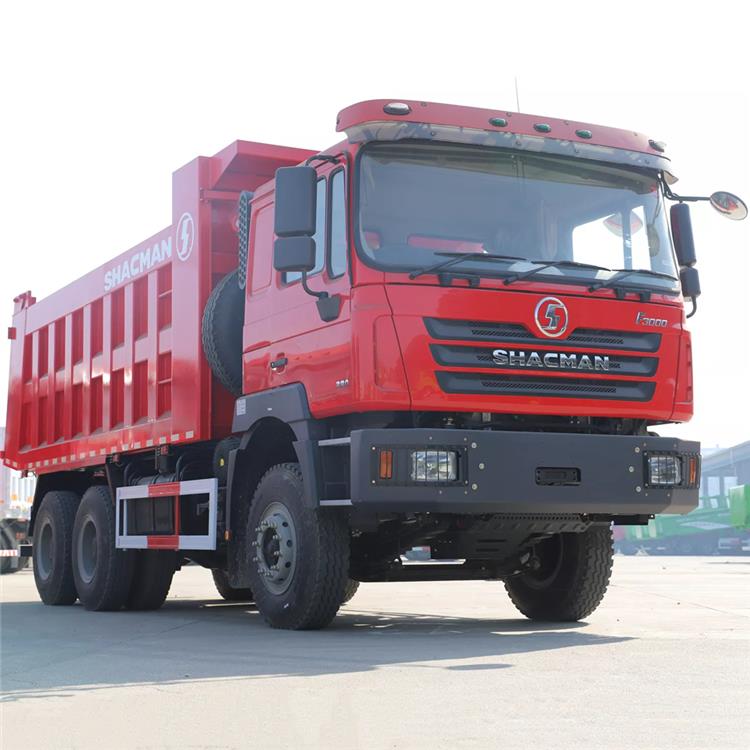

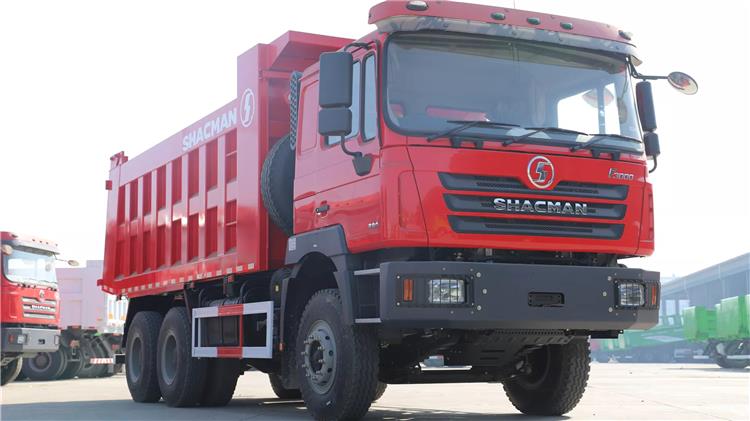

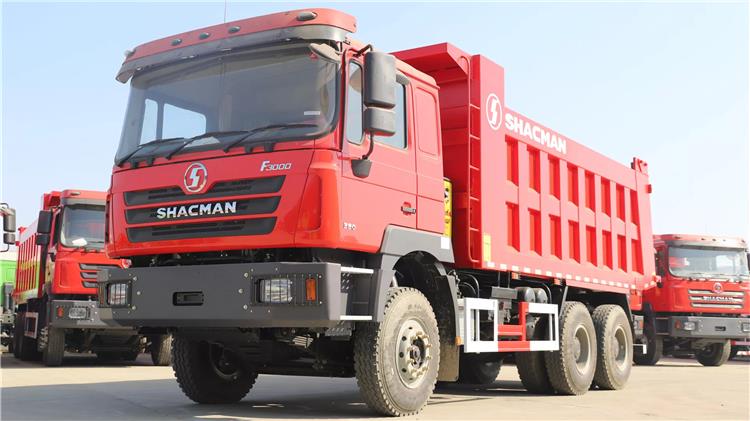

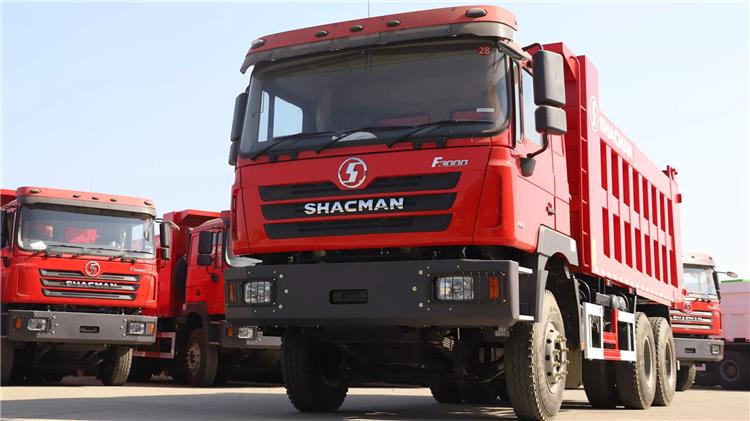

Shacman Truck F3000 Price | Shacman Tipper Truck for Sale
Shacman Truck F3000 Price | Shacman Tipper Truck for Sale
Shacman Truck F3000 Price | Shacman Tipper Truck for Sale
Brand: Shacman Truck F3000
Drive model: Left or right driven hand, 6X4
Clutch: ∮430 diaphragm clutch
Gearbox Model: Fast Fuller 9JS135 gearbox with 9 forward and 1 reverse
Propeller shaft: ∮180 contrite gear propeller shaft
Front axle: Man technology 7.5 tons
Rear axle: Styre13 tons with hub reduction ratio 1:4.8
Chassis: Various widths, front 940mm and rear 780mm
Rear suspension: inverted leaf spring with stabilizer
Instrument panel: Combined instrument panel
Tyre: 12.00-20/12.00R20/12.00R22.5,11ps
Cabin: Man F3000 flat head with two seats and one sleep with A/C, 2 rear windows, mechanical clerestory, hydraulic suspension cab, hydraulic chair, metal bumper, USB, electrically reversal cab
Other: enlargement radiator, ABS
Engine:
Engine model: Weichai WP10.336
Power(Kw/Hp): 380
Speed(r/min):2200
Idle speed(r/min):600-800
Max torque(N.m):1250
Type: electrically control, diesel engine, 4-stroke,6-cylinder in line, inter-cooling and turbo-charging, euro-3 emission standard
Stroke(mm):125/147
Displacement(L):9.726
Min.fuel consumption(g/Kw.h):≦198
Engine oil filling volume:39L
Thermostat Opened at 82℃
Oil pump: Bosch
Steering
Model: 8098 integral circuiting ball power steering
Ratio:22.2-26.2:1
Brakes
Running brake: Dual circuiting compressed air brake
Parking brake: Rear wheel power spring brake
Auxiliary brake: Engine exhaust brake
Electrics
Starter: 5.58kw,24V
Alternator: 1.54kw(28V,55A)
Battery: 135AH
Dimension (mm)
Wheel base:3200+1350
Front-wheel track:1525
Rear wheel track:2036
Front overhang: 1850
Rear overhang: 1450
Approach angle: 28°
Departure angle: 30°
Overall length: 7550
Overall width:2490
Overall height: 3450
Body dimension:4800X2300X1300/1400/1500(bottom 8mm and side 4mm)
Fuel tank(L): 300L
Weight(Kg)
GVW:25000
Front axle loading capacity:7500
Rear axle loading weight: 13000X2
Performance:
Max. running speed(km/h):90
Max. climbing capacity(%):20
Min. ground clearance(mm):318
Fuel consumption(L/100km):40
