Tri axle 40 foot flatbed trailer is a semi-trailer with container structure. Mainly used in ships, ports, routes, highways, transfer stations, bridges, tunnels, multimodal transport and other logistics systems. Tri axle 40 foot flatbed trailer is generally used to transport containers, bulk cargo, bulk cement, bulk rice, etc., mainly for long distance transportation.
The loading part of the Tri axle 40 foot flatbed trailer is determined according to the size of the standard container, and there are twist-lock devices for fixing the container at the corresponding positions of the four corners of the bottom of the container.

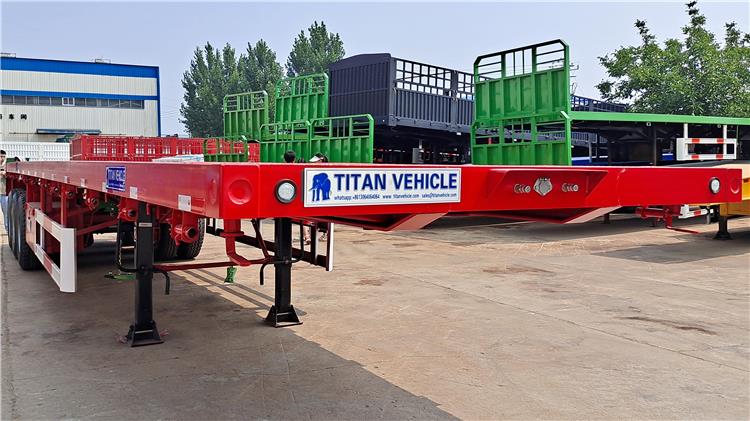

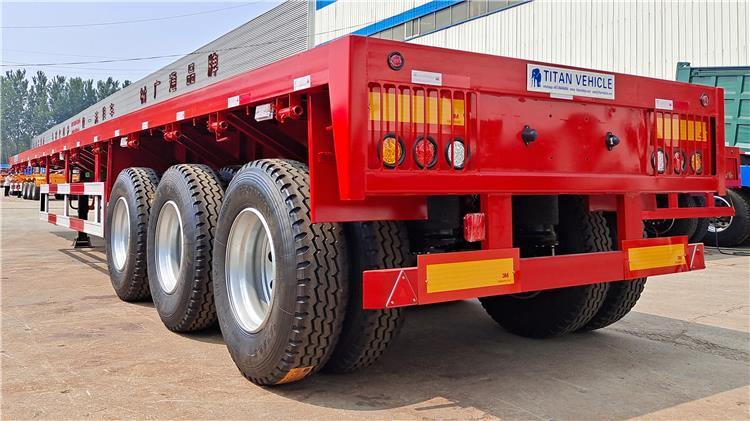

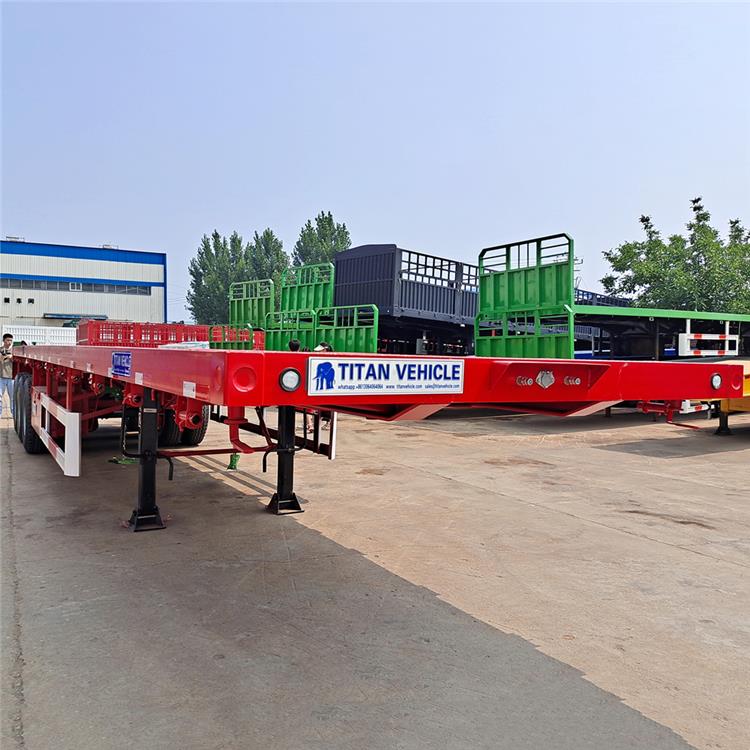

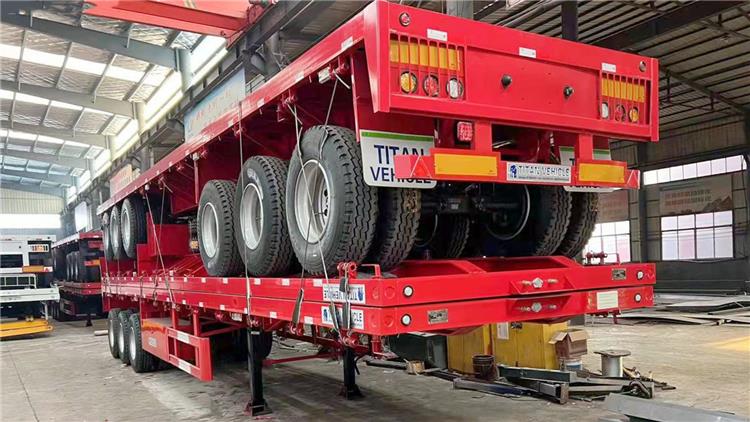

Tri Axle 40 Foot Flatbed Trailer for Sale Price Manufacturer
Tri Axle 40 Foot Flatbed Trailer for Sale Price Manufacturer
Tri Axle 40 Foot Flatbed Trailer for Sale Price Manufacturer
Model: Tri axle 40 foot flatbed trailer

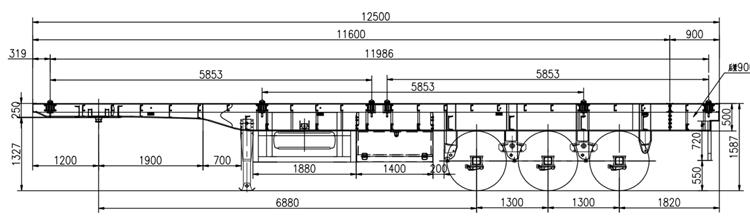

Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)

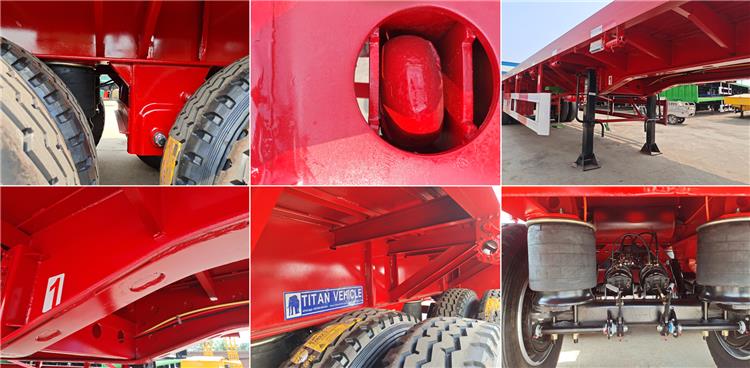

12 sets of container locks for carrying 1 40ft container and 2 20ft containers. Ropes and hooks help secure cargo and are suitable for multi-piece shipments.
An epoxy coat and acrylic topcoat finish. Durable and rust-resistant, it supports longer aesthetics and service life.
Submerged arc automatic welding construction, key point reinforcement, targeted welding, according to experience, avoid some parts that are easy to miss welding, support longer working time of the vehicle, no maintenance.
Tri axle 40 foot flatbed trailer BPW, FUWA world's best axles work with WABCO brake valves to brake more efficiently for safety and save tire costs Repair of premium springs and suspension for longer life and maintenance savings cost.
Fill out the below Email and WhatsApp. We will send you the latest quotation and catalog.
