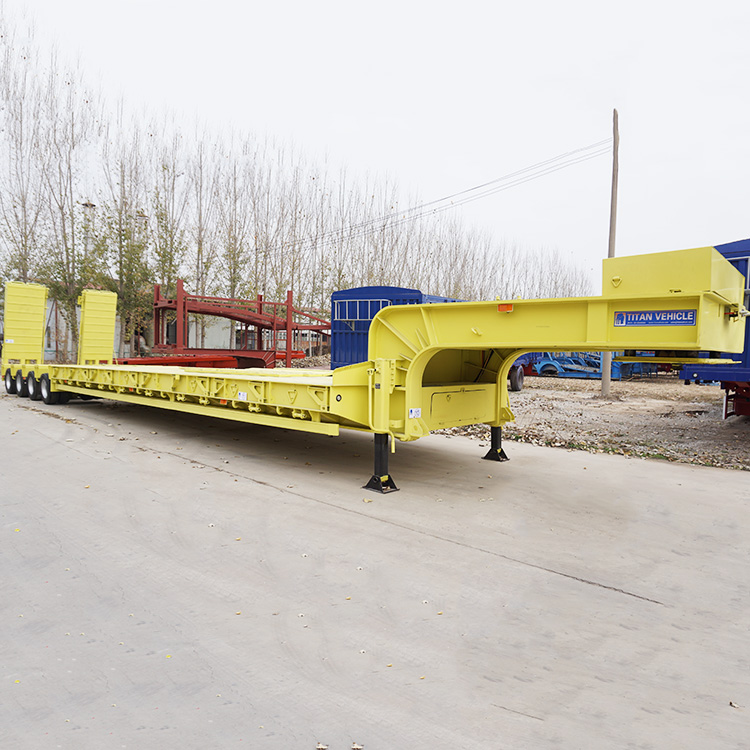

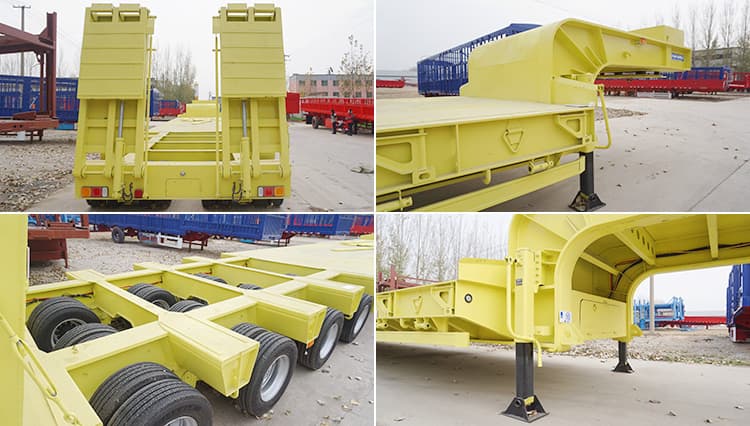

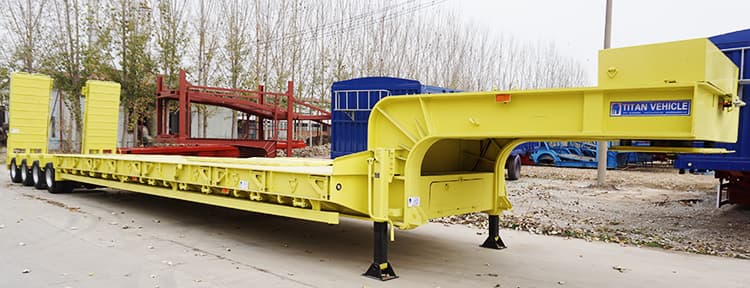

150 ton heavy haul trailer is mainly used to transport heavy machinery, such as tractors and other large equipment. Different from other trailers of 150 tons. . The characteristics of the truck are the ultra-low height of the cargo table and the low center of gravity, which facilitates the transportation of goods and ensures the safety of transportation.
We can also provide you with 150 ton heavy haul trailer with different capacities, such as 40,60,80,100,120 ton heavy haul trailer with different number of axles (2,3,4,5,6 axles)
150 Ton Heavy Haul Trailer for Sale Manufacturers in Nigeria
150 Ton Heavy Haul Trailer for Sale Manufacturers in Nigeria
150 Ton Heavy Haul Trailer for Sale Manufacturers in Nigeria

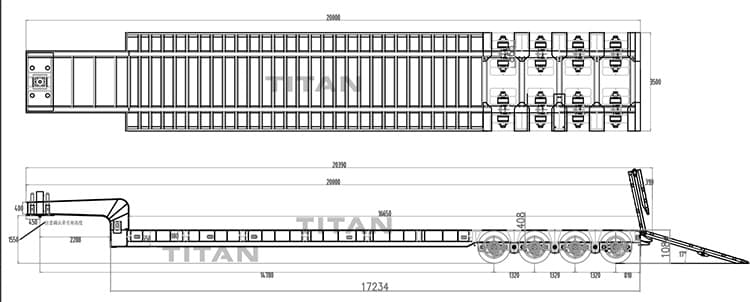

Overall dimension: 20000mm * 3500mm *3400mm
Loading capacity(T): 150T
Axle: 13T/16T, FUWA / BPW Brand
Rim: 8.0-20
Tire: 32,11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm
Bottom Platform: 5mm thick checkered plate

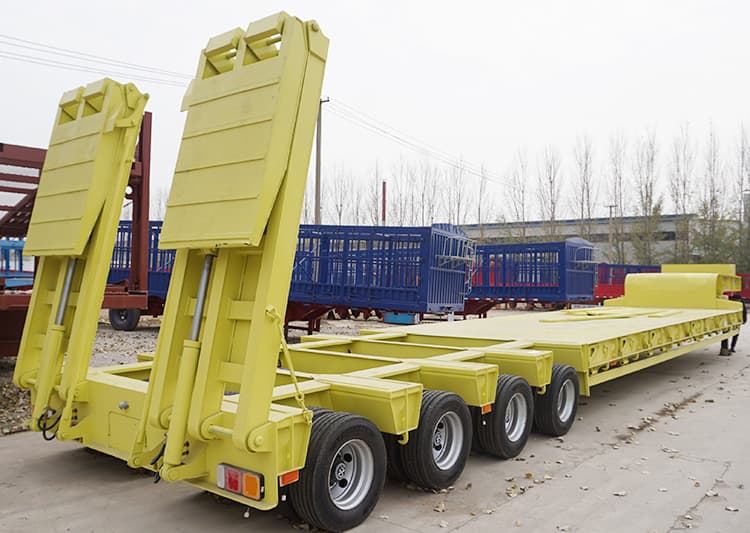

Ramp: ,Folding ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
150 Ton Heavy Haul Trailer for Sale Manufacturers in Nigeria
