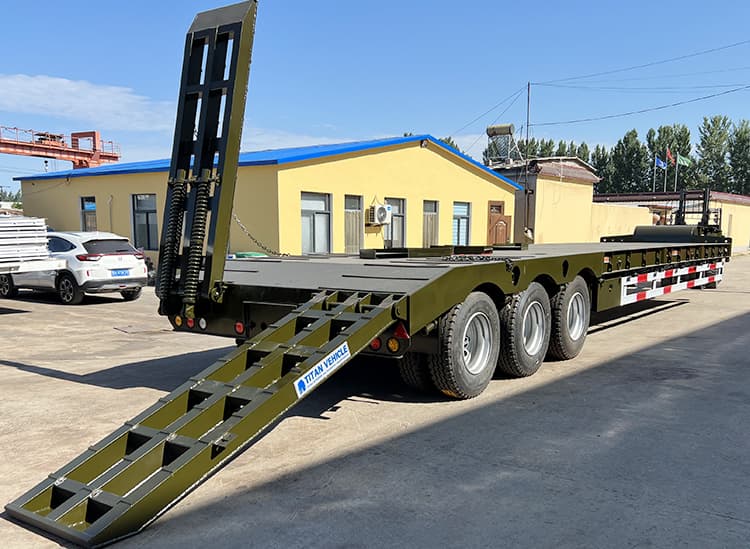

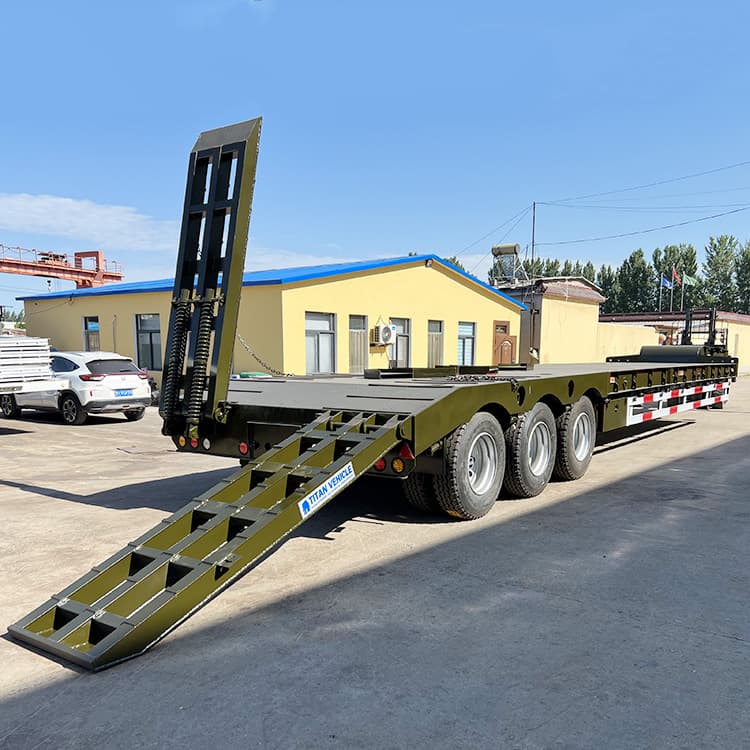

The spring ramp of the 80 ton tri axle semi low loader trailer will not be deformed or damaged when heavy machinery and equipment are passed through, because it is welded with H60 steel high-strength steel plate, which has super load-bearing capacity
The carrying capacity of this tri axle low loader trailer is very strong, because the frame of this low loader trailer , which is the most important factor affecting the carrying capacity of the 80 ton tri axle semi low loader trailer, is very sturdy and has a special design.

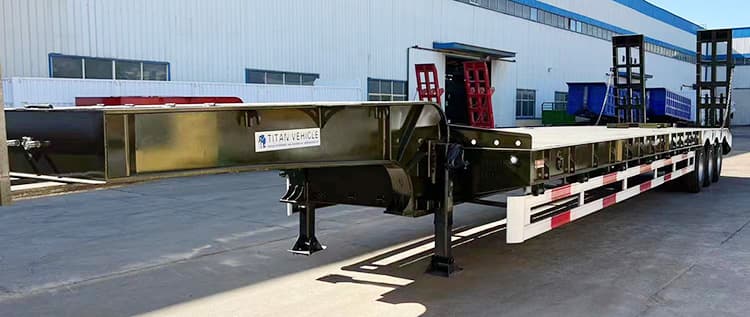

Meanwhile, the main beam of the 80 ton tri axle semi low loader trailer that builds the frame is made of Q460C high-strength structural steel, which is more durable and stronger than ordinary steel. This ensures the stability of the frame.
80 Ton Tri Axle Semi Low Loader Trailer for Sale in Nigeria
80 Ton Tri Axle Semi Low Loader Trailer for Sale in Nigeria
Overall dimension: 16800mm * 3000mm *3760mm
Loading capacity(T): 80 tons
Axle: 3 axle semi low bed trailer, 13T/16T, FUWA / BPW Brand
Rim: 8.0-20
Tire: 12units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
80 Ton Tri Axle Semi Low Loader Trailer for Sale in Nigeria

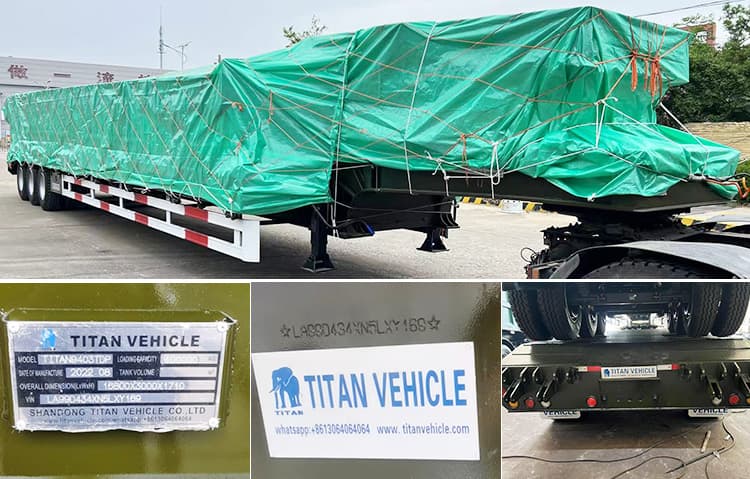

80 Ton Tri Axle Semi Low Loader Trailer Package
80 Ton Tri Axle Semi Low Loader Trailer for Sale in Nigeria
If you are interested, please leave your message below, we will contact with you soon.
