Generally speaking, a 40ft container chassis trailer can transport a 40ft container or 2*20ft container cargo.
The longitudinal beam of the 40ft container chassis trailer is integrally formed by blanking the whole plate, and there is no welding in the middle, so that the beam has high strength, greater bearing capacity and longer service life.

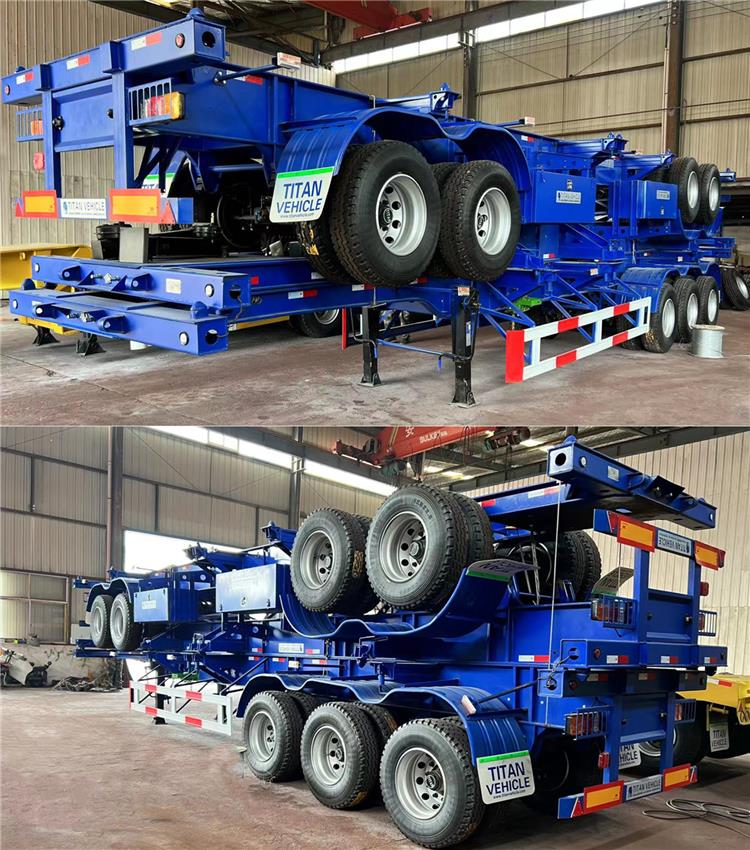

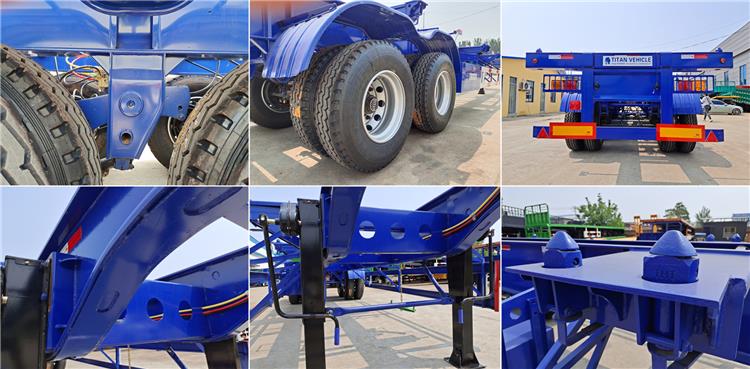

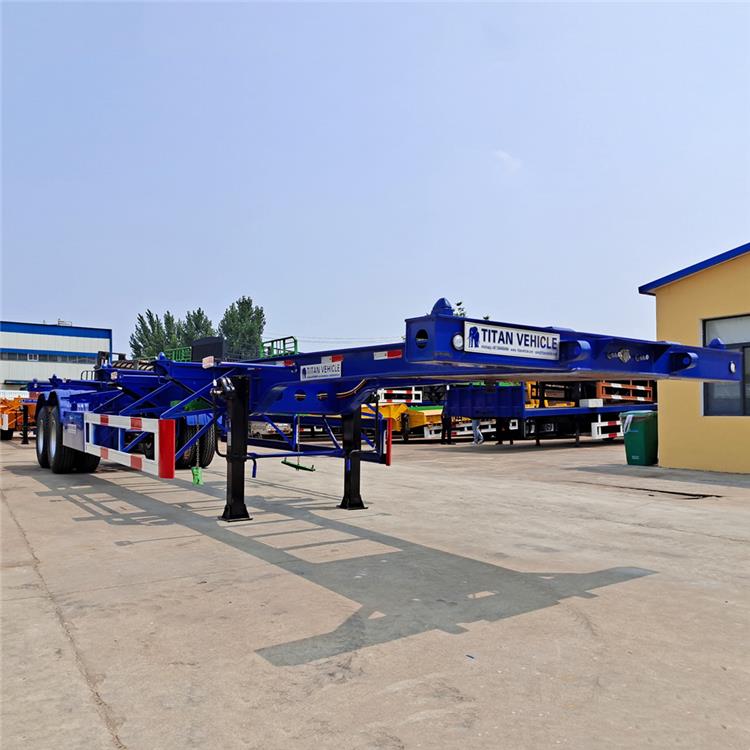

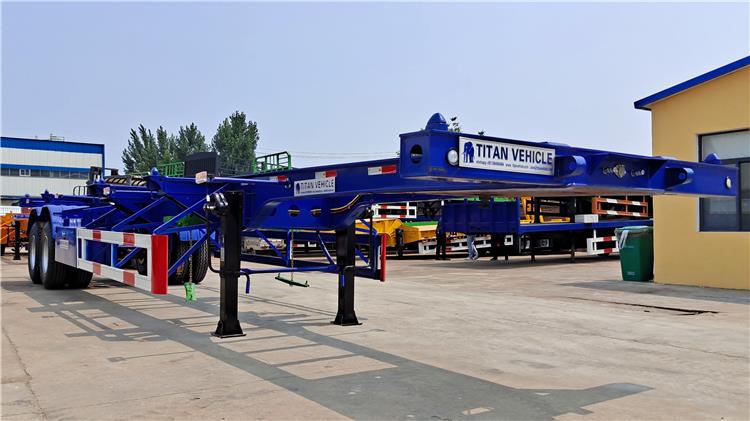

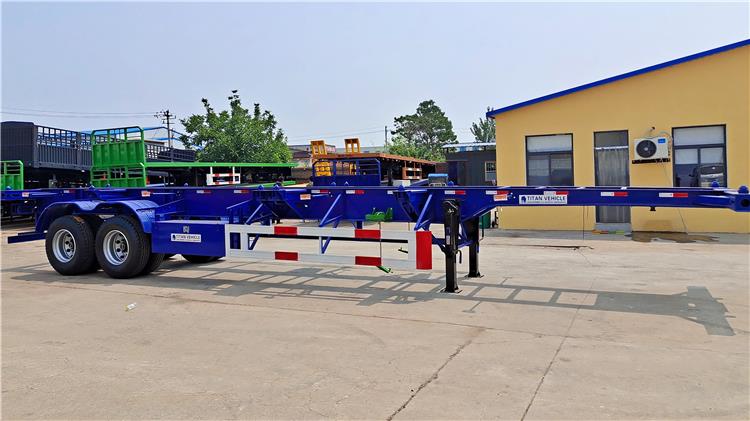

2 Axle 40ft Container Chassis Trailer for Sale Near Me in Kenya
2 Axle 40ft Container Chassis Trailer for Sale Near Me in Kenya
2 Axle 40ft Container Chassis Trailer for Sale Near Me in Kenya
Dimension(mm): 12400x2500x1500mm
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Loading capacity(ton): ≤60T
Axles: 2 axles, 13T/16T ,FUWA/ BPW
Tire: 8 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension or Air suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Twist Locks: 4,8,12 sets (lifting or screw type)
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Before we ship the 40ft container chassis trailer, we will spray a layer of wax and then cover it with a rain cloth to ensure that the 40ft container chassis will not be corroded by sea water.
The 40ft container chassis transportation method generally includes ro-ro, bulk carrier or container transportation. The container transportation cost is low and the transportation speed is fast. Due to the frequent fluctuation of sea freight, it is recommended to consult our business manager.
