3 Axle semi low bed trailer for sale use high-strength steel T700 to ensure the load capacity of the low bed trailer price, the load of this 3 axle semi low bed trailer can reach 80 tons. Often used to load heavy equipment, etc.
The loading platform of the 3 Axle semi low bed trailer is lower than that of the general semi-trailer, so the center of gravity is low and the transportation is stable, which ensures the safe transportation of heavy goods
What is Low Bed Trailer | 3 Axle Semi Low Bed Trailer for Sale Price
What is Low Bed Trailer | 3 Axle Semi Low Bed Trailer for Sale Price
What is Low Bed Trailer | 3 Axle Semi Low Bed Trailer for Sale Price

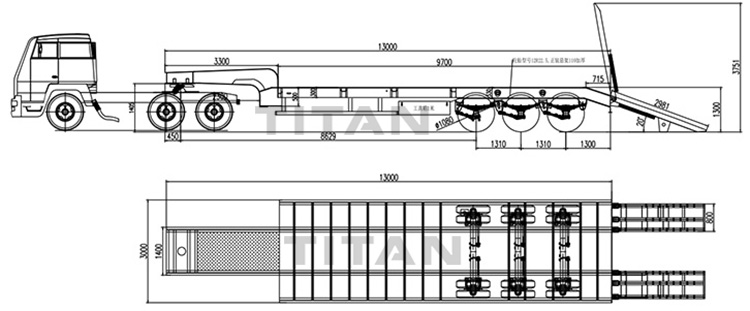

Overall dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 80 tons
Axle: 3 axle semi low bed trailer, 13T/16T, FUWA / BPW Brand
Rim: 8.0-20
Tire: 12units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate

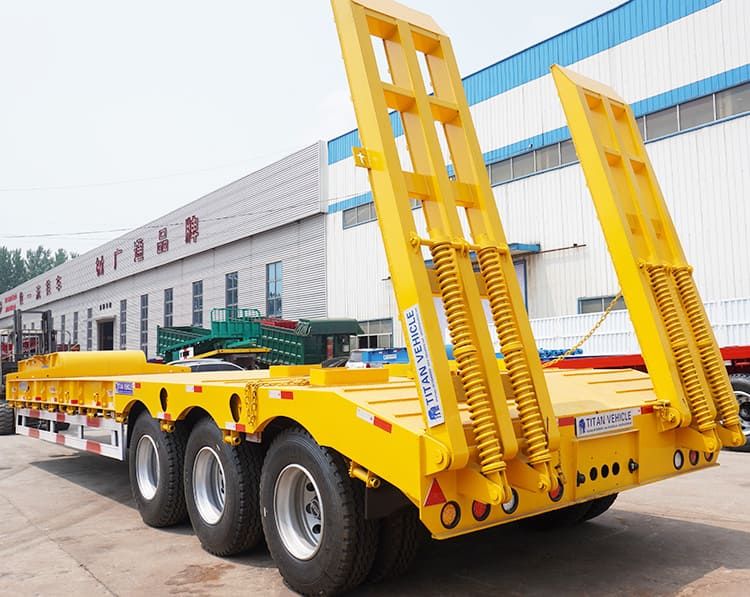

Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
What is Low Bed Trailer | 3 Axle Semi Low Bed Trailer for Sale Price
If you are interested, please leave your message below, we will contact with you soon.
